GRINDING MACHINES

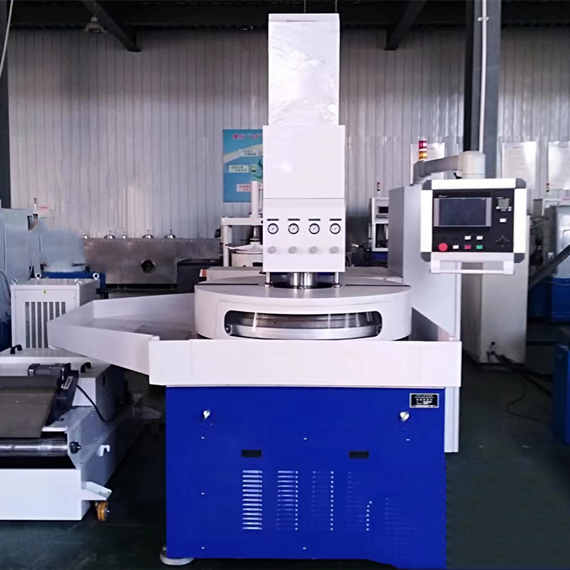

Double-Disc Fine Grinding Machines
The MSH-906, MSH-915 and MSH-1015 series combines a rigid cast base, opposed wheel operation and controlled pressure for flat-part finishing. Non-contact measurement, touch-screen operation and semi-automatic handling support process control.
Why this configuration
- Wheel diameters: 750 / 1000 / 1200 mm
- Maximum workpiece diameters: 180 / 310 / 400 mm
- Upper and lower drive powers: 5.5 / 7.5 / 10.5 kW per model
Technical specifications
| Parameter/Model | MSH-906 | MSH-915 | MSH-1015 |
|---|---|---|---|
| Wheel Diameter (mm) | D750 | D1000 | D1200 |
| Maximum workpiece diameter (mm) | 180 | 310 | 400 |
| Upper motor (KW) | 5.5 | 7.5 | 10.5 |
| Upper speed (r/min) | 5~80 | 5~80 | 5~80 |
| Lower motor (KW) | 5.5 | 7.5 | 10.5 |
| Lower speed (r/min) | 5~80 | 5~80 | 5~80 |
| Inner ring motor (KW) | 2 | 3 | 4 |
| Inner ring speed (r/min) | 5~50 | 5~50 | 5~50 |
| Machine Size (mm) | 2140x1800x2230 | 2300x2070x2770 | 2500x2100x2770 |
| Machine weight (KG) | 3000 | 5000 | 7000 |
The source also contains an unrelated polishing-paste passage; it is excluded here. Published sealing-ring results apply only to the described workpiece and process.
Applications & workpiece selection
- Bearing faces and cutting inserts
- Ceramic and magnetic components
- Hydraulic, automotive and compressor parts
Specify material, part dimensions, stock removal, surface targets and production quantity so the configuration can be checked for the intended process.
Confirm the details before selection
Workpiece & process
Provide a drawing, material grade, hardness where applicable, incoming condition and required geometry. Published results must be read with their original test conditions.
Machine & tooling
Confirm the model, mounting dimensions, interfaces, abrasive or carrier specification, coolant and required documents. Request a dimensioned drawing for the configuration being quoted.
