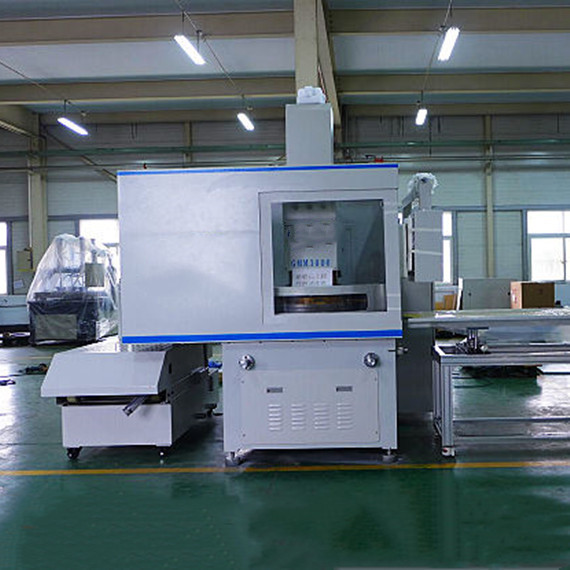

GMM1000 High-Precision Double-Side Grinder

A double-sided surface-processing platform with a cast machine bed, a swing-out upper plate and an inner-ring servo drive. Its configuration specification covers wheel drives, measurement, pneumatics, coolant filtration and supplied equipment.

Why this configuration

Swing-out upper plate supports workpiece access
Magnescale size control and SMC pneumatic components are listed
Ø1000 × Ø450 mm grinding wheels; 6 mm abrasive layer

Technical specifications

Item	MSH1000
Machine bed	The high strength integral casting bed, the swing arm on the machine is made of high strength cast iron and equipped with protective plate. The upper plate can be turned out for easy loading and unloading.
Upper plate drive	AC frequency conversion gear reducer - Power: 10KW(2units) - Brand: SEW-EURODRIVE - Protection grade IP54 - Speed: 0～80RPM Adjustable frequency converter - Brand: Schneider

Lower plate drive	AC frequency conversion gear reducer - Power: 10KW (2units) - Brand: SEW-EURODRIVE - Protection grade IP54 - Speed: 0～80RPM Adjustable Frequency converter - Brand: Schneider
Inner ring drive	Servo motor - Power: 3.0KW - Protection grade IP54 - Speed: 0～60RPM adjustable
Size measurement control device	Size Controller - Model: DG25PR5 - Brand: Magnescale - Origin: Japan
Pneumatic components	Oil water separator - Barnd: SMC - Origin: Janpan Cylinder - Brand: SMC - Origin: Japan Precision solenoid valve, pressure regulating valve, connector and other pneumatic control components - Brand: SMC - Origin:Japan
Max air pressure	0.6MPa

Grinding wheel	Grinding wheel - Type: Vitrified/Resin bond Diamond grinding wheel - Abrasive layer thickness: 6mm - Size: O.D1000mm×I.D450mm
Dressing for Grinding wheel	GC Dressing grinding wheel - Application: for the dressing of diamond grinding wheel - Quantity: 4 pcs/ set - Material: GC
Technical documents	- Operation/maintenance Manual in English 1 set - Workpiece carrier drawing 1 set - Instructions for purchased parts 1 set
Dimension & Size	Dimension： 2500(W)×2100(D)×2700(H) mm Weight： about 6500kg

Item	Quantity	Note
High precision Grinding machine	1 set	SKF-GMM1000
Dressing Grinding wheel	1 set
Dressing Wheel Carrier	1 set
Work piece Carrier	1 set	Cooling tank (300L) Filter paper1 roll
Coolant System	1 set
Filter Paper+ Magnetic Separator system	1 set
Semi-auto loading/unloading table	1 set
Toolbox	1 set
Operating Manual	1 set	Packing list and certificate
Diamond/CBN Grinding wheel	1 set

The source uses GMM1000, MSH1000 and SKF-GMM1000 identifiers. Confirm the supplied configuration and exact model designation before ordering.

Applications & workpiece selection

Ceramics and glass
Metal parts
Semiconductor-related surface processing

Specify material, part dimensions, stock removal, surface targets and production quantity so the configuration can be checked for the intended process.

Confirm the details before selection

Workpiece & process

Provide a drawing, material grade, hardness where applicable, incoming condition and required geometry. Published results must be read with their original test conditions.

Machine & tooling

Confirm the model, mounting dimensions, interfaces, abrasive or carrier specification, coolant and required documents. Request a dimensioned drawing for the configuration being quoted.
